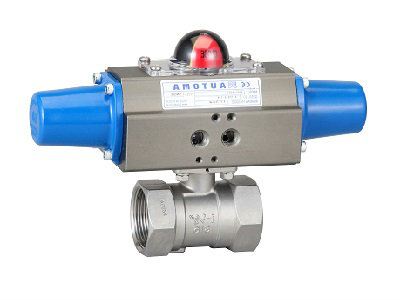

    AUTOMA Pneu Actuator (Screw 1pc Ball Valve)



#AT121 STAINLESS STEEL 1-PIECE BODY BALL VALVE

AUTOMA 1-piece type ball valve is reduced bore designed. The body is made of investment casting and the valve is featured with blow-out proof stem. Ball valve seat material is Reinforced Teflon (R-PTFE) for excellent chemical resistance and improved cycle life.

● ISO5211 DIN337 direct mounting pad
● Body material: SS316
● Nominal pressure up to 1000 W.O.G
● Temperature range from -20°C to +180°C
● Pipe thread according to ISO 228 BSPP (G), options for NPT or BSPT
● Applications for Plumbing, Industrial Plant, Food Industries, Process Equipment etc.
