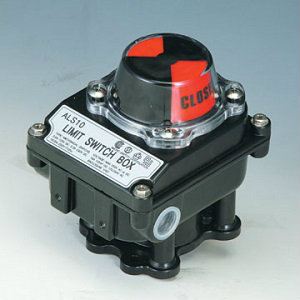

    AUTOMA Limit-Switch-Box #ALS
  • Space

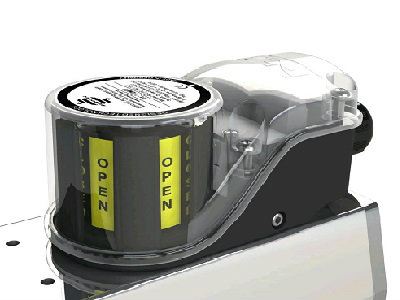

    AUTOMA Limit-Switch-Box #IP2M01
  • Space

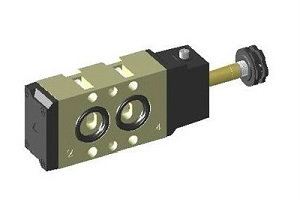

    AUTOMA Namur Valve #ANS3000
  • Space
    AUTOMA Pneu Actuator (Screw 3-way Ball Valve)

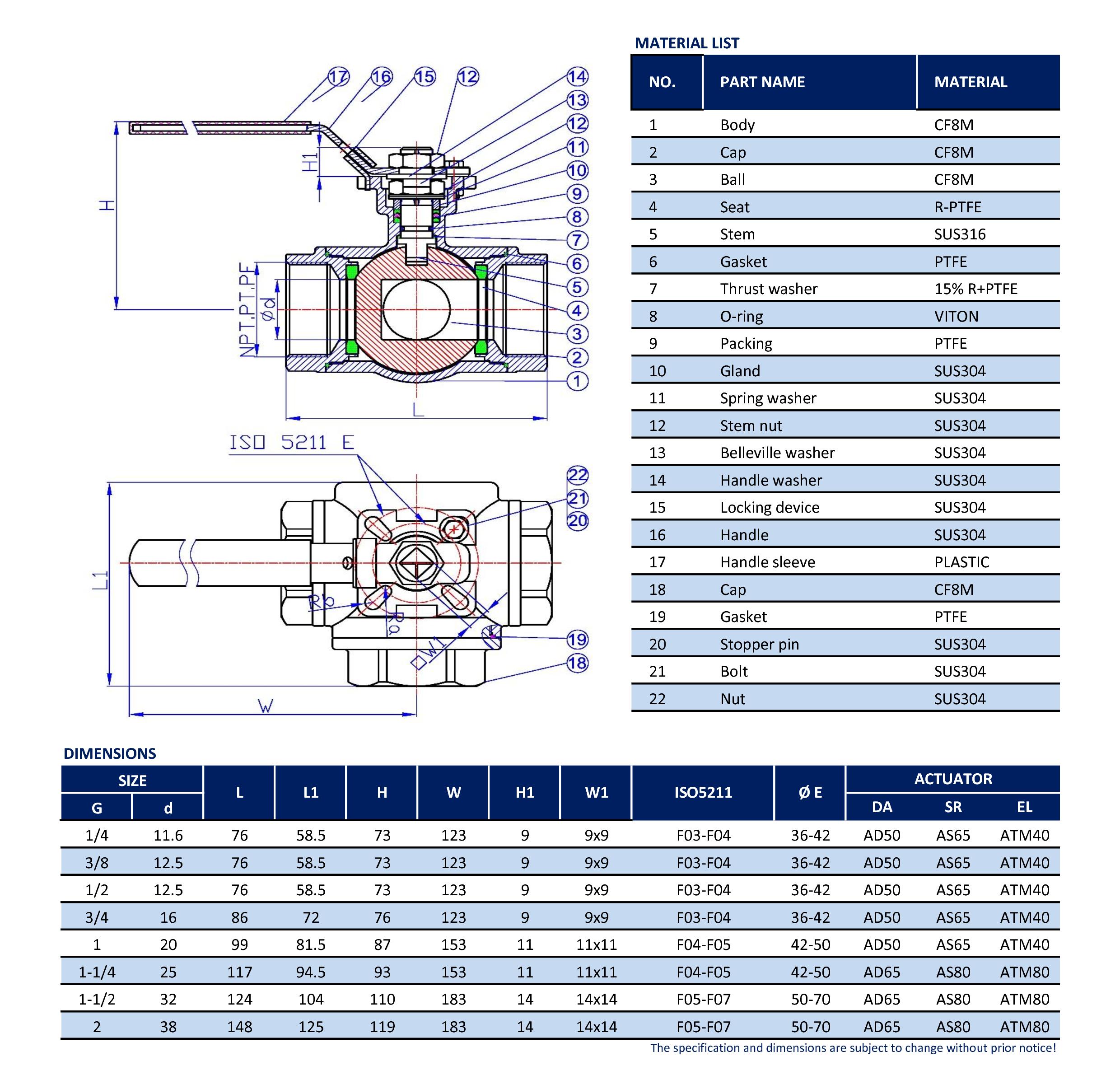

#At341 STAINLESS STEEL 3-PORT BALL VALVE

AUTOMA 3-port ball valve is designed for diverting or mixing of media commonly known as L-port or T-port.
L-port has a centre inlet port and direct it out either of two outlet ports 90° left or right. It is commonly used for alternately diverting flow from a single source to two different lines.
T-port inlet is from the side, direct it our either straight through pipe or 90° angle. Both L-port and T-port can be used for media mixing purpose, example mixing of hot and cold water.
Applications for Plumbing, Industrial Plant, Food Industries, Process Equipment, Water and Sewage Industries, Rubber and Palm Oil Industries.

● Investment casting body
● Blow-out-proof stem
● ISO5211 DIN3337 direct mounting pad
● Body material available: WCB, SS304, SS316
● Nominal pressure up to 1000 W.O.G
● Temperature range from -20°C to +180°C
● Pipe thread according to ISO 228 BSPP (G), options for NPT or BSPT
● Applications for Plumbing, Industrial Plant, Food Industries, Process Equipment, Water and Sewage Industries, Rubber and Palm Oil Industries, etc.
