AUTOMA Pneu Actuator (S/Steel Flange Ball Valve)
  • Space
    AUTOMA Pneu Actuator (S/Steel Flange Ball Valve)
  • Space

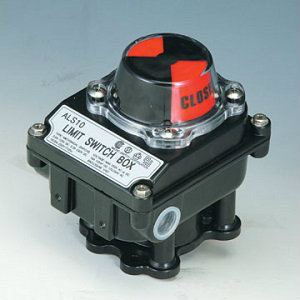

    AUTOMA LSB #ALS10
  • Space

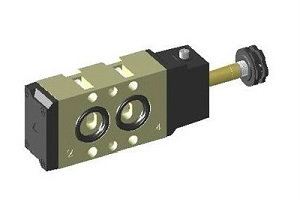

    AUTOMA Namur Valve #ANS3000
  • Space

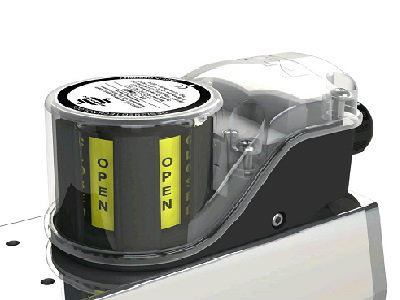

    AUTOMA Compact LSB #IP2M01

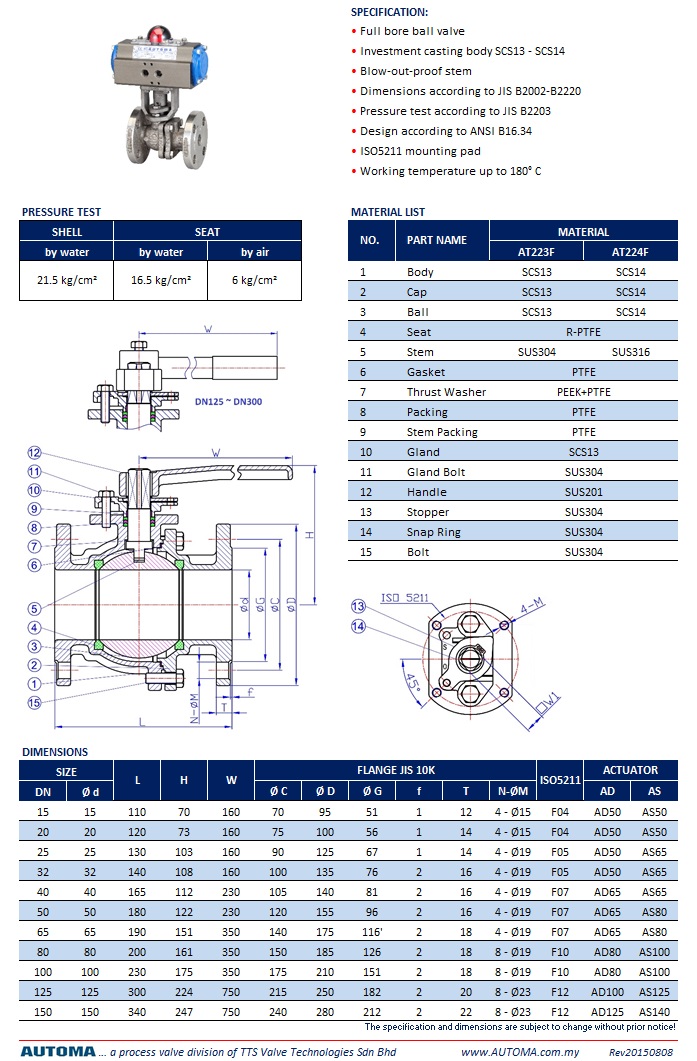

#AT223   - SS304 JIS-10K BALL VALVE
#AT224   - SS316 JIS-10K BALL VALVE
#AD #AS  - PNEUMATIC ACTUATOR
#ANS3000 - NAMUR VALVE
#IP2M01  - COMPACT lIMIT-SWITCH-BOX
#ALS10   - LIMIT-SWITCH-BOX


AUTOMA flange ball valve 2-piece body is full bore designed for easy maintenance service for all internal parts. The body is made of investment casting and the valve is featured with blow-out proof stem. Ball valve seat material is Reinforced Teflon (R-PTFE) for excellent chemical resistance and improved cycle life. Top flange with ISO5211 mounting pad for easy and secure mounting with actuators.

Applications for Industrial Plant, Food Industries, Process Equipment, Water and Sewage Industries, Rubber Industries, Palm Oil, Sugar Mill, Power Plant, Palm Oil, Chemical, Petrochemical and Refinery Plants.

● Body material available: SCS13, SCS14
● Working temperature up to 180°C
● Design according to ANSI B16.34
● Dimensions according to JIS B2002-B2220
● Pressure test according to JIS B2203
