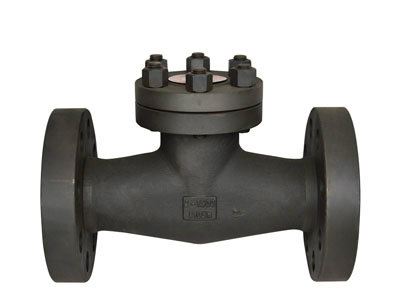

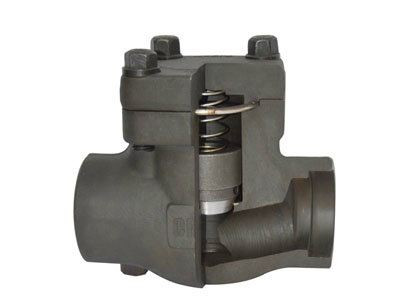

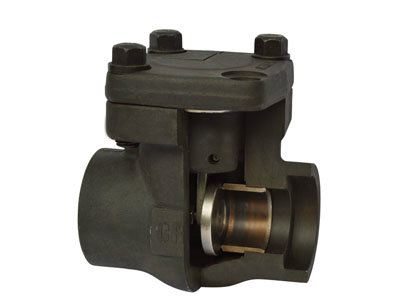

AUTOMA FORGED STEEL CHECK VALVE

SPECIFICATIONS:
Body Material: A105, F304L, F316L, F347, F321, LF2, F5, F11, F22, F51, F55, Inconel, Monel, Hastelloy, etc.
Pressure Rating - Class 150LB, 300, 600, 800, 900, 1500, 2500

STANDARDS:
Designed and manufacture conform to API 602, BS5352, ASME B16.34
Socket Weld Dimension - ASME B16.11
Threaded End Dimension - ASME B1.20.1
Butt Weld Dimension - ASME B16.25
Test and Inspection - API 598

AUTOMA Forged Steel Check Valves are designed and manufactures accordance to ASME Standard allows one-way flow to prevent the pipelines and related equipments from damage against reverse flow of medium. It is designed with compact construction, high tightness and is maintenance free.

AUTOMA Forged Steel Check Valve can be installed in any position on the pipeline, paying attention to correct flow direction of medium that should be in accordance with marking on the body. It is widely used in process industries such as Palm Oil and Refinery Plant, Petrochemical, Power Plant, Oil and Gas Industries, Pulp and Paper Mill, Heating and Cooling System.

APPLICATION
Suitable for water, steam, oil, gases and non-abrasive media
